VFD & AC Drives

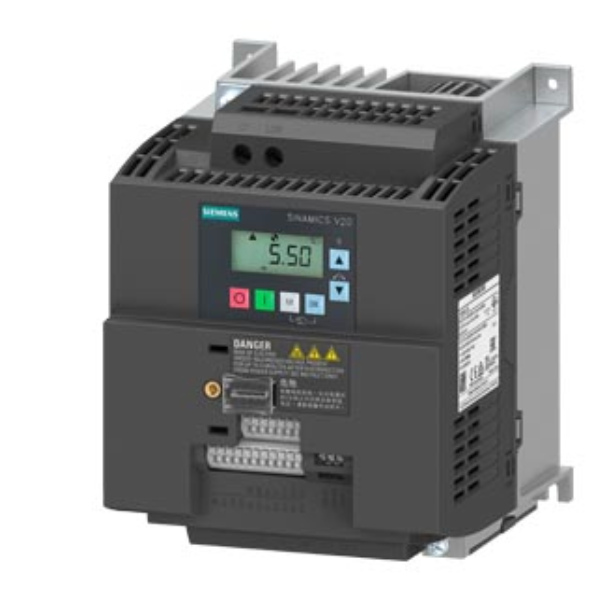

SINAMICS V20 2.2 kW Variable Frequency Drive (Single Phase)
₹17,230.00
₹9,150.69
47% OFF
new
Model:
6SL3210-5BB22-2UV1
Description
The Siemens SIMATIC SINAMICS V20 2.2 kW Variable Frequency Drive is a compact, cost-effective AC drive designed for efficient speed control of three-phase induction motors. It is ideal for pumps, fans, compressors, conveyors, textile machinery, packaging machines, and other general industrial automation applications. With integrated USS/Modbus RTU communication, a built-in Basic Operator Panel (BOP), and simple parameterization, the SINAMICS V20 offers fast commissioning and reliable operation. Its compact design saves valuable panel space while delivering high efficiency and dependable motor control.
key specification
- Product Family: SIMATIC SINAMICS V20
- Drive Type: Variable Frequency Drive (VFD)
- Rated Power: 2.2 kW
- Model Number: 6SL3210-5BB22-2UV1
- Input Voltage: 200–240 V AC
- Input Phase: Single Phase (1AC)
- Input Voltage Tolerance: -15% / +10%
- Input Frequency: 47–63 Hz
- Output Voltage: 3-Phase AC
- Motor Overload Capacity: 150% for 60 Seconds
- Digital Inputs: 4
- Digital Outputs: 2
- Analog Inputs: 2
- Analog Outputs: 1
- Communication Protocol: USS / Modbus RTU
- Operator Interface: Built-in Basic Operator Panel (BOP)
- Protection Class: IP20
- UL Rating: UL Open Type
- Frame Size: AD
- Dimensions (W × H × D): 136 × 176.5 × 160 mm
- Cooling Method: Forced Air Cooling
- Mounting Type: Panel Mount
- Motor Control: V/f Control
